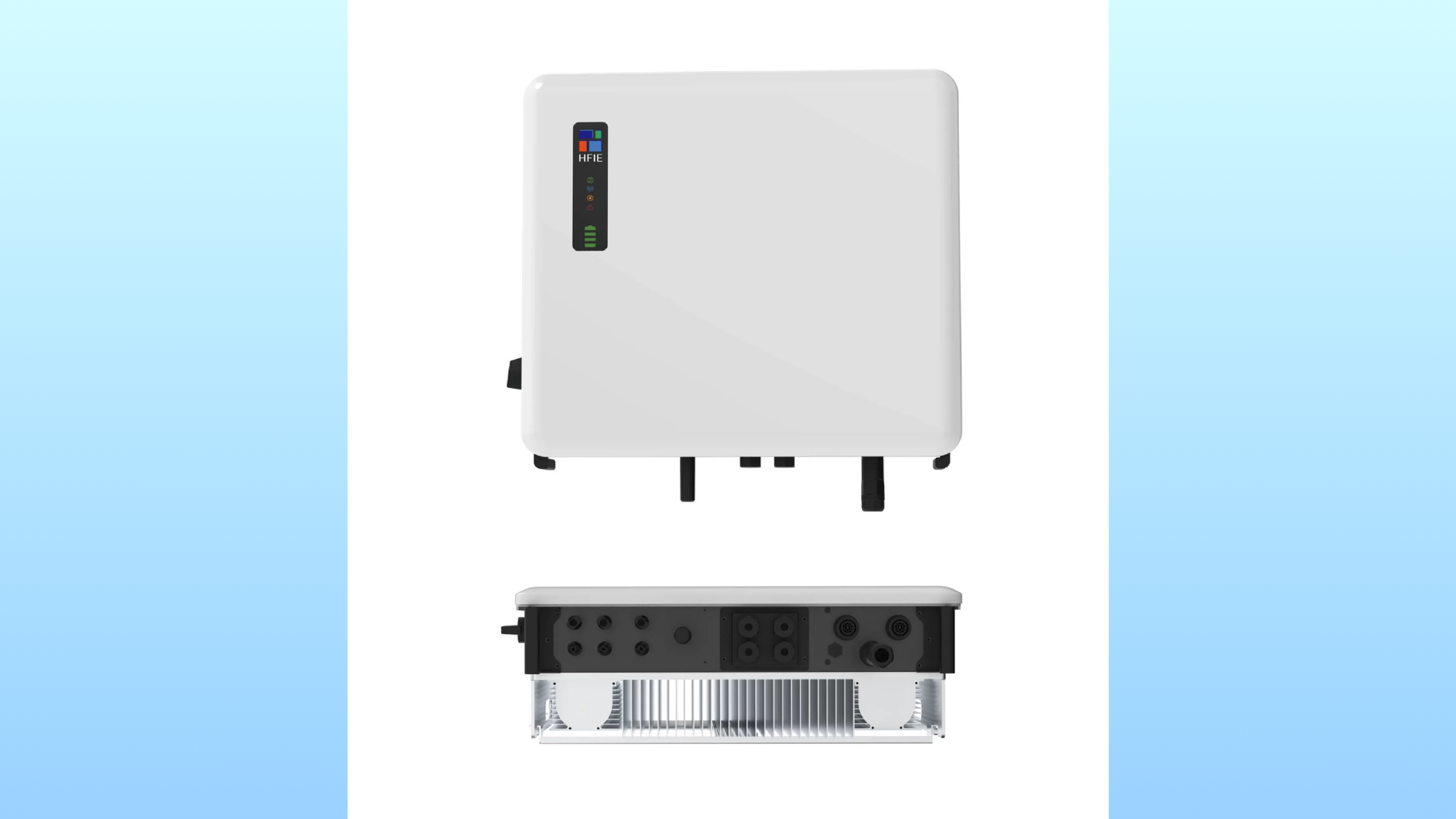

Biến Tần HF-HH8K~12K-P3EU

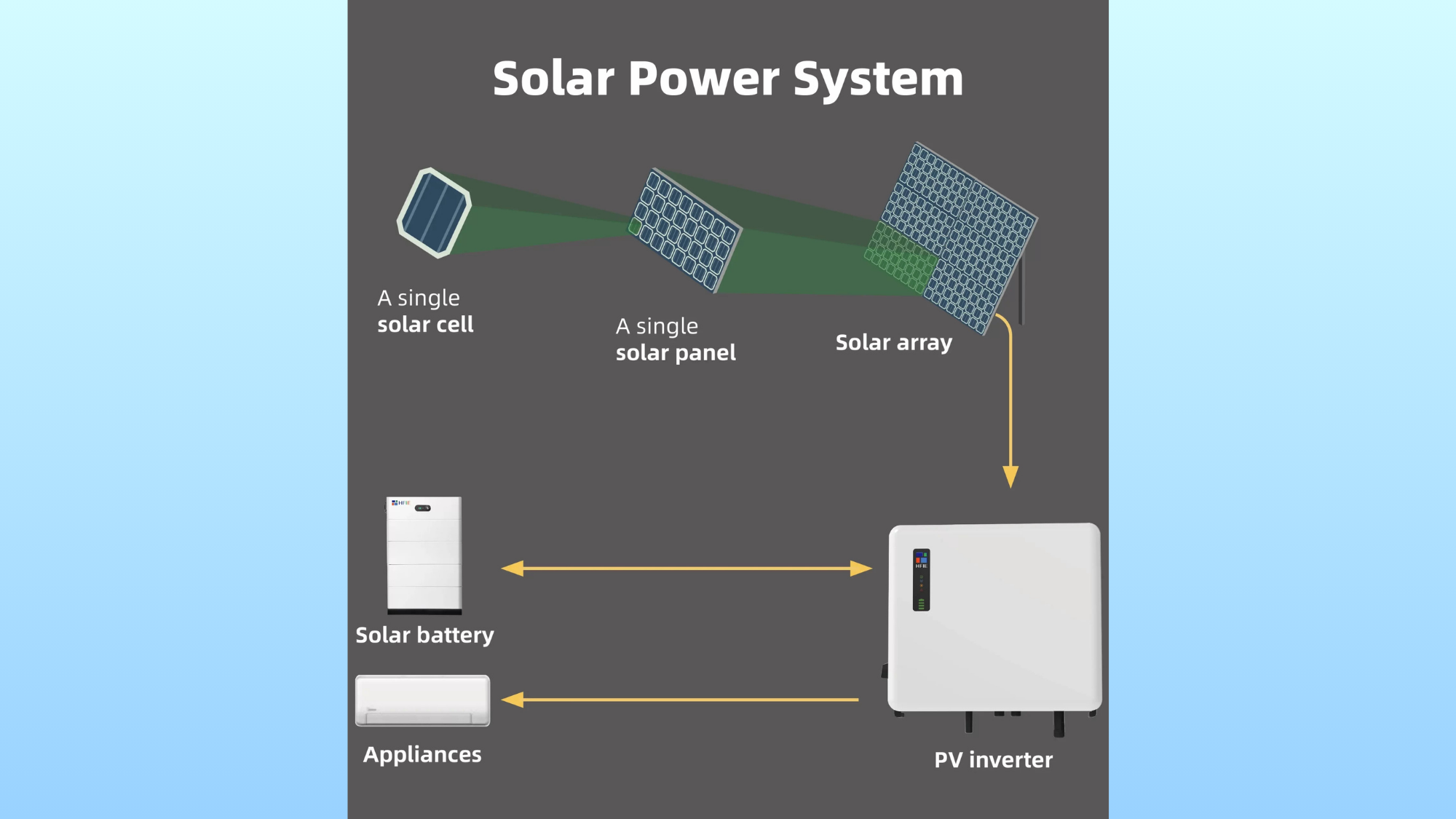

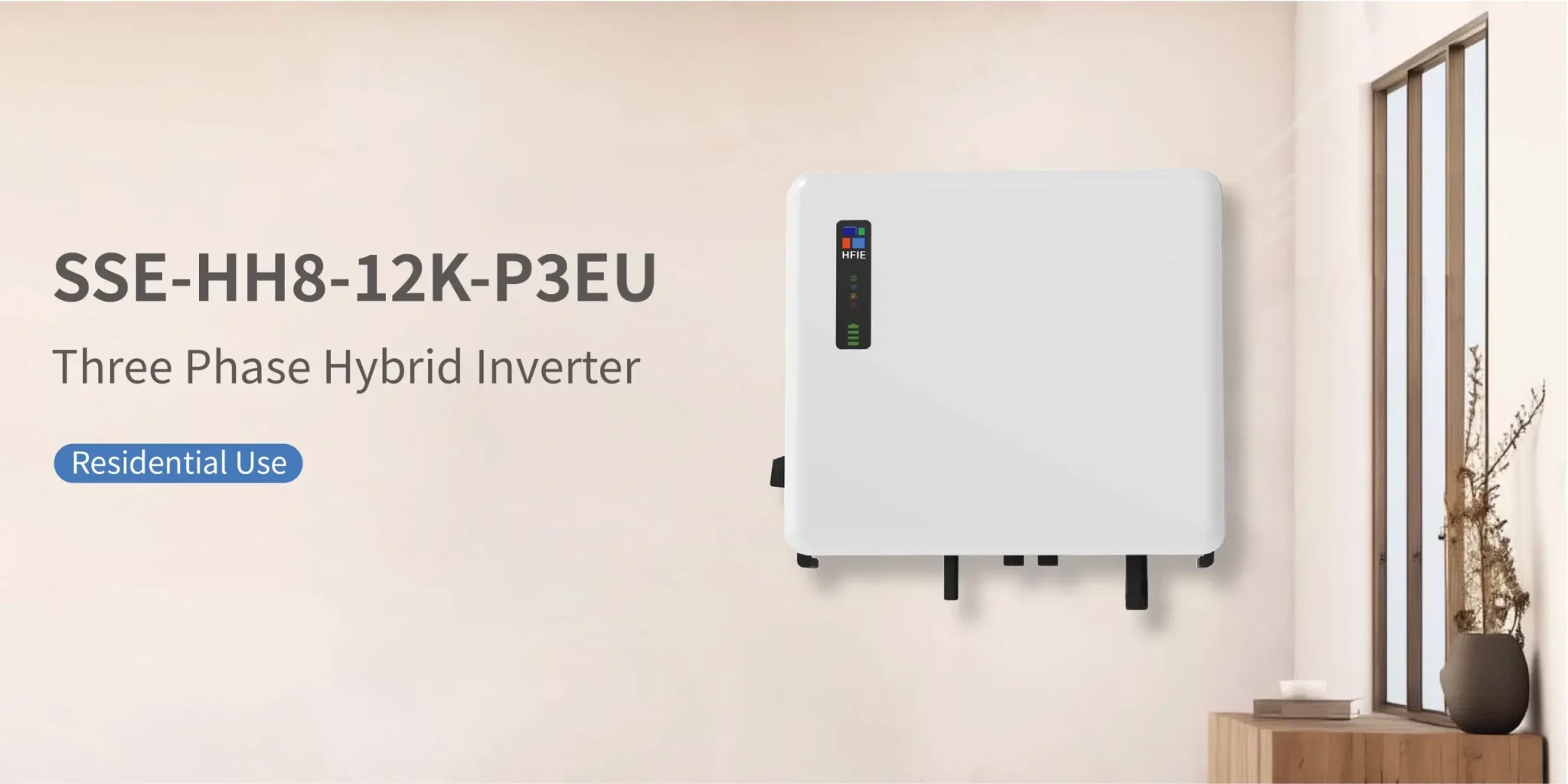

The SSE-HH8K~12K-P3EU is a cutting-edge three-phase high voltage energy storage inverter, designed for 8kW~12kW power needs in residential and small commercial settings. It features top-tier components and advanced digital control for stable, efficient, and reliable power, both on-grid and off-grid. Supporting various battery types and communication methods, it offers flexible configuration and remote monitoring to meet diverse power requirements.

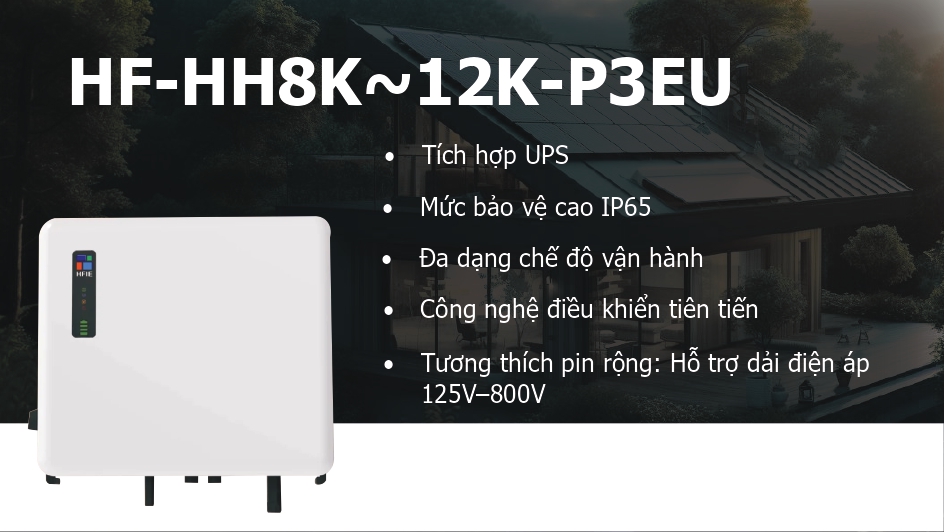

• Wide Battery Compatibility: Supports 125V-800V, mainstream BMS protocols, customizable for flexible energy solutions.
• Advanced Control Technology: Latest DSP technology for improved MPPT, <3% harmonic current/voltage, reduces grid damage.
• Versatile Operating Modes: Self-use, TOU, backup, generator, and balance modes for diverse energy management.
• High Protection Level: IP65-rated, reliable operation in harsh environment.
• Integrated UPS Function: <10ms off-grid switch time, continuous power to critical loads.
Mô tả
| TECHNICAL SPECIFICATION | |||
| Model | SSE-HH8K-P3EU | SSE-HH10K-P3EU | SSE-HH12K-P3EU |
| INVERTER INPUT / OUTPUT (GRID) | |||
| Rated Power (Input / Output) | 12 kW / 8 kW | 14 kW / 10 kW | 16 kW / 12 kW |
| Rated Voltage | 380 / 400 V a.c., 3W+N+PE | ||
| Rated Frequency | 50 Hz / 60 Hz | ||
| Power Factor Range | 0.8 leading~0.8 lagging | ||
| Switch Time | <10 ms | ||
| Maximum Continuous Current (Input / Output) | 17.4 A a.c. / 12.8 A a.c. | 20.3 A a.c. / 15.9 A a.c. | 23.2 A a.c. / 19.1 A a.c. |
| Max. Output Overcurrent Protection | 400 V a.c. / 60 A a.c. | ||
| BATTERY | |||
| Battery Type | Lithium / Lead-acid | ||
| Battery Voltage Range | 125~800 V d.c. | ||
| Rated Battery Voltage | 200 V d.c. | 250 V d.c. | 300 V d.c. |
| Max. Charge Current | 40 A d.c. | ||
| Max. Discharge Current | 40 A d.c. | ||
| Reverse Connect Protection | Yes | ||
| PV INPUT | |||
| No. of MPPT Tracker / Strings | 2 / 1+1 | ||
| Max. PV Array Power | 12 kW | 15 kW | 18 kW |
| Max. DC Voltage | 1000 V d.c. | ||
| MPPT Voltage Range | 150 ~ 950 V d.c. | ||
| Start-up Voltage | 200 V d.c. | ||
| Max. Input Current | 16 + 16 A d.c. | ||
| Isc PV (Absolute Maximum) | 24 + 24 A d.c. | ||
| AC OUTPUT(EPS) | |||
| EPS Rated Output Voltage | 380 / 400 V a.c., 3W+N+PE | ||
| EPS Rated Output Frequency | 50 Hz | ||
| EPS Rated Output Active Power | 8 kW | 10 kW | 12 kW |
| EPS Rated Output Apparent Power | 8 kVA | 10 kVA | 12 kVA |
| EPS Rated Output Current | 11.6 A a.c. | 14.5 A a.c. | 17.4 A a.c. |
| Overload Capacity (Off Grid) | 110% 30 s/120% 10 s/150% 2s | ||
| EFFICIENCY | |||
| MPPT Efficiency | 99.90% | ||
| Euro-efficiency | 97.50% | ||
| Max. Efficiency | 98% | ||
| PROTECTION & FEATURE | |||
| Insulation Monitoring | Yes | ||
| Residual Current Monitoring | Yes | ||
| Parallel Function | Yes | ||
| Protection Degree | IP65 | ||
| Certifications | CEI 0-21, EN 50549-1, VDE -AR-N 4105, UNE 217002, IEC62109-1/2, IEC61000, NTS631 | ||
| Other Protection | Output over voltage, Output over current, Short circuit, Surge, Over temperature, Anti-islanding | ||
| GENERAL PARAMETER | |||
| Storage Temperature | -25°C ~ +60°C | ||
| Operating Temperature | -25°C ~ +60°C (Linely derating to 60% when exceed +45°C ~ +60°C) | ||
| Humidity | 0~100% (No-condensing) | ||
| Operating Altitude | 4000 m (>2000 m, Derating) | ||
| Noise | ＜35 dB | ||
| Dimensions (W*H*D) | 530*600*210 mm | ||
| Machine Weight/ N.W. | 35 kg | ||
| DISPLAY & COMMUNICATION | |||
| Display | LED + APP | ||
| Interface | CAN / RS485 / Bluetooth / WiFi / 4G / DRM (Optional) | ||
