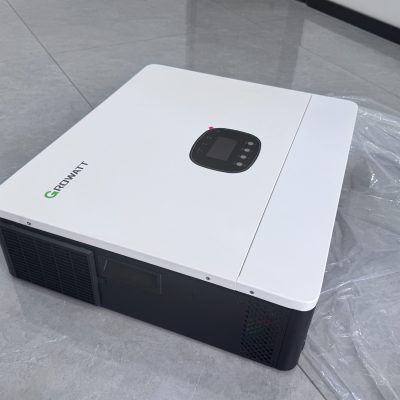

Biến Tần 8-12kVA Thông Minh - GROWATT Hybrid Solar Single Phase Inverter
Tấm năng lượng mặt trời HFIE - HF60P-xxxM(590-610W)

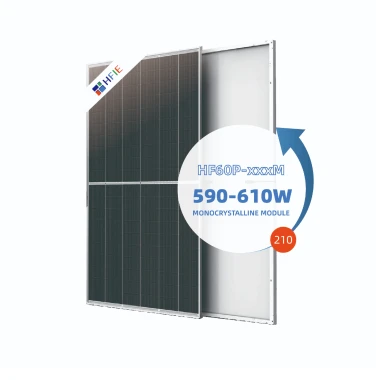

Tấm năng lượng mặt trời HFIE – HF60P-xxxM(590-610W)

0 đã bán

Monocrystalline/Single Glass/12 Busbars/120 Half-cells
  • MBB main gate technology, higher module power
  • Output power with 100% positive tolerance of (0, +5W)
  • 2 rounds of 100% EL testing
  • Anti-reflective coating and self-cleaning on glass surface
  • Enhanced power generation performance in shade
  • Better resistance to hot spots
Danh mục:

Mô tả

Đặc tính kỹ thuật sản phẩm

Hot Sales EU Stock Solar Panels 590W 595W
High Efficiency PV 600w 605w 610w
Powerful Cell Price Rotterdam

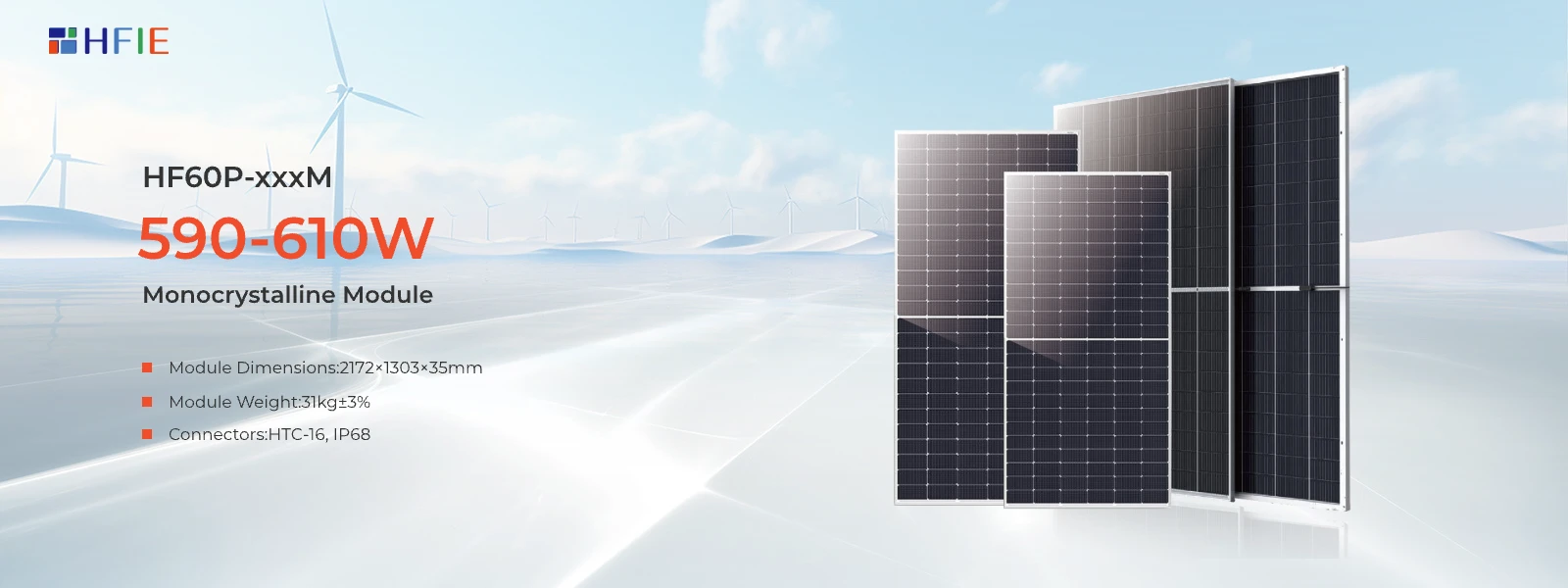

HFIE60-1

Electrical Performance Parameters Under Standard Test Conditions

Maximum Power Output (W) 0~+5W 590 595 600 605 610
Maximum Operating Voltage (V) 34.03 34.22 34.43 34.63 34.82
Maximum Operating Current (A) 17.34 17.39 17.43 17.47 17.52
Open Circuit Voltage (V) ±3% 41.13 41.32 41.52 41.71 41.90
Short Circuit Current (A) ±3% 18.41 18.46 18.51 18.56 18.63
Conversion Efficiency 20.85% 21.02% 21.20% 21.38% 21.55%
Maximum System Voltage 1500V 1500V 1500V 1500V 1500V
Maximum Fuse Rating 35A 35A 35A 35A 35A

Our Certificate

Solar Panel modules have been certifited by UL, TUV, CE, IEC, CEC, MCS, etc.

HFIE60-2
